After five years and a few prototype revisions of the Version 2.12 Programmable Voltage reference, I decided it was time to update the project based on many requests and lessons learned from prototypes over the years.

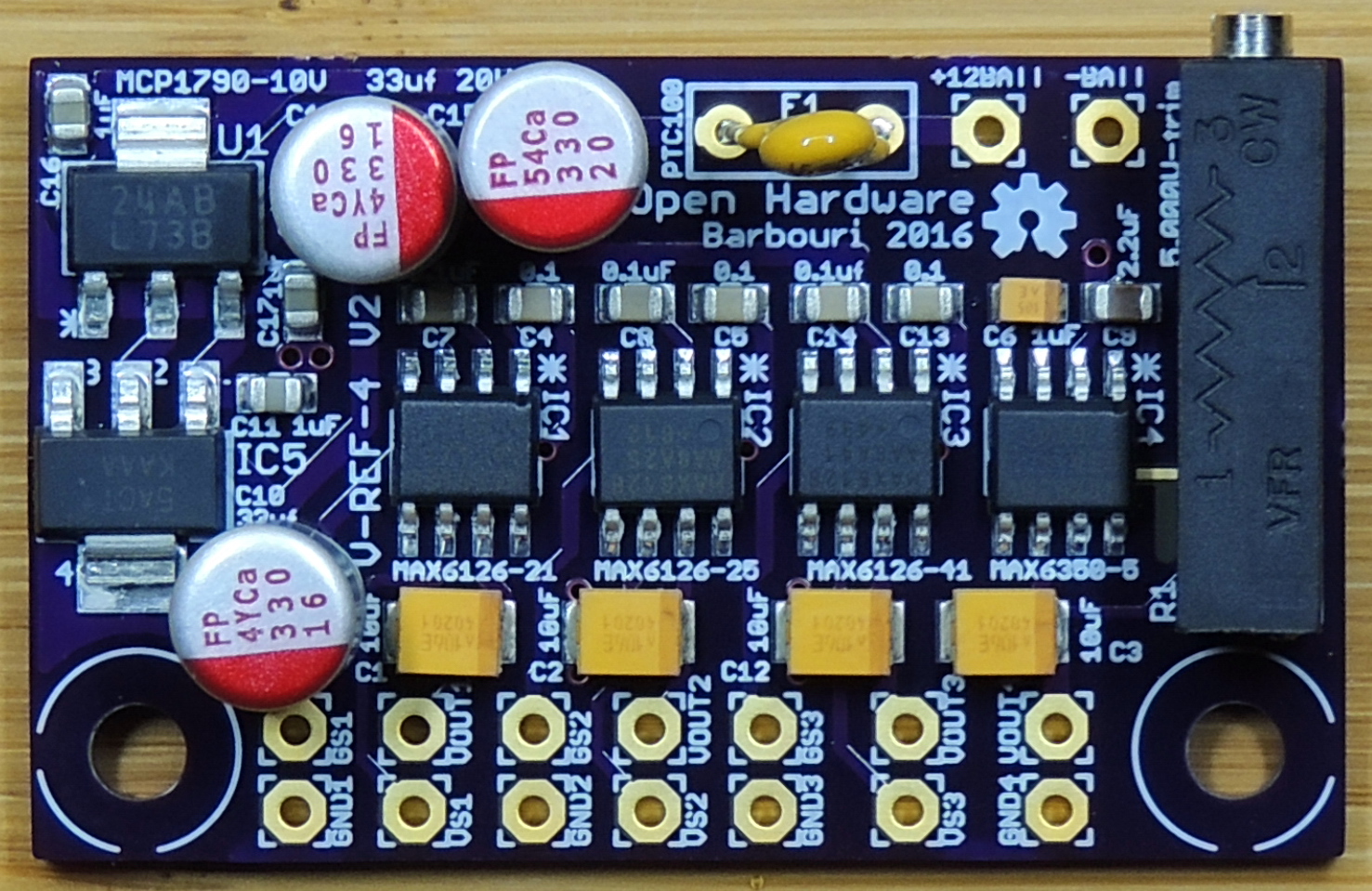

This is my version 2 board update, which incorporates supply voltage regulation, over-current protection, and trimmer for the 5.000 volt reference all on the same board. Continue reading “Voltage Reference Quad Project Version 2 — Part 1”

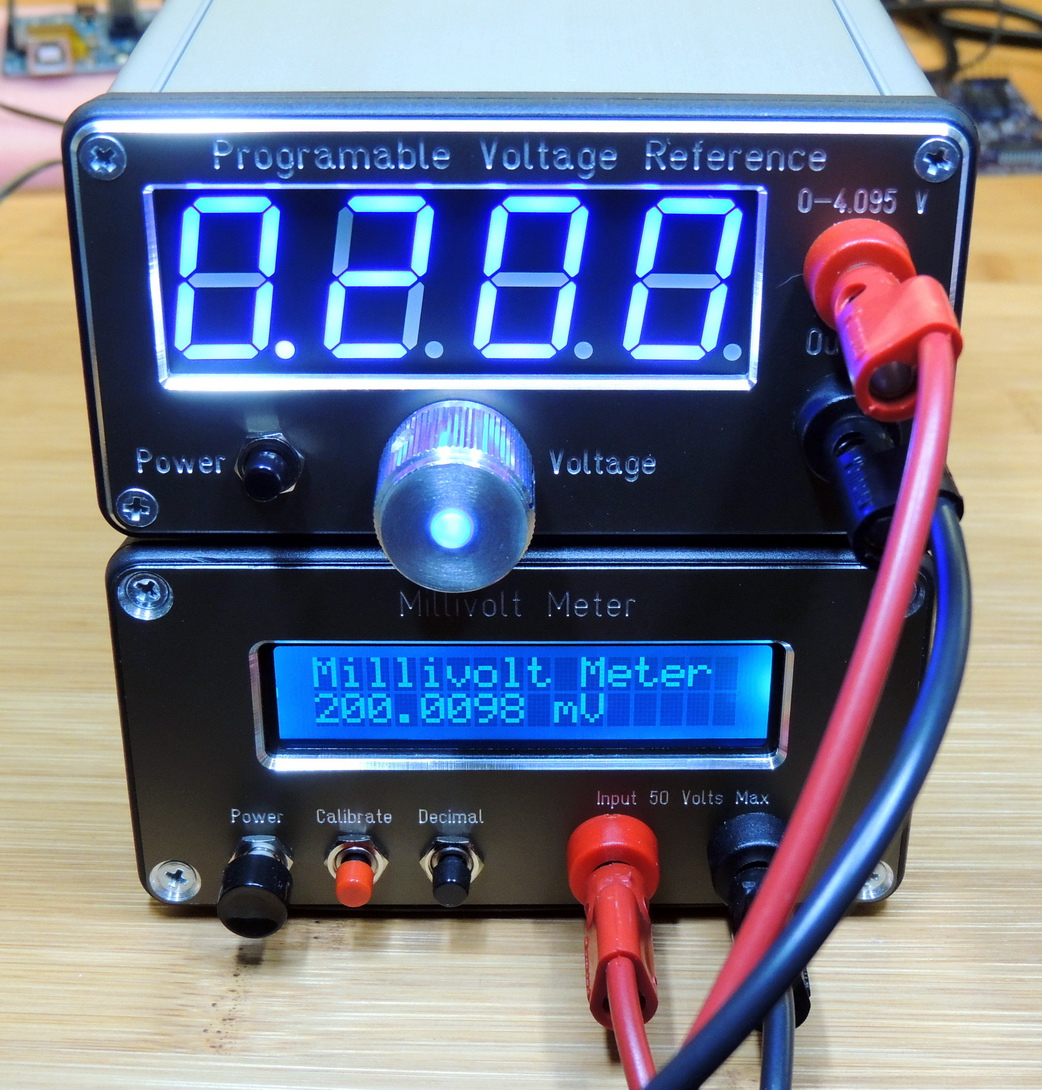

Finishing up the Programmable Voltage Reference project …
Continue reading “Programmable Voltage Reference V2.12 Completion…”

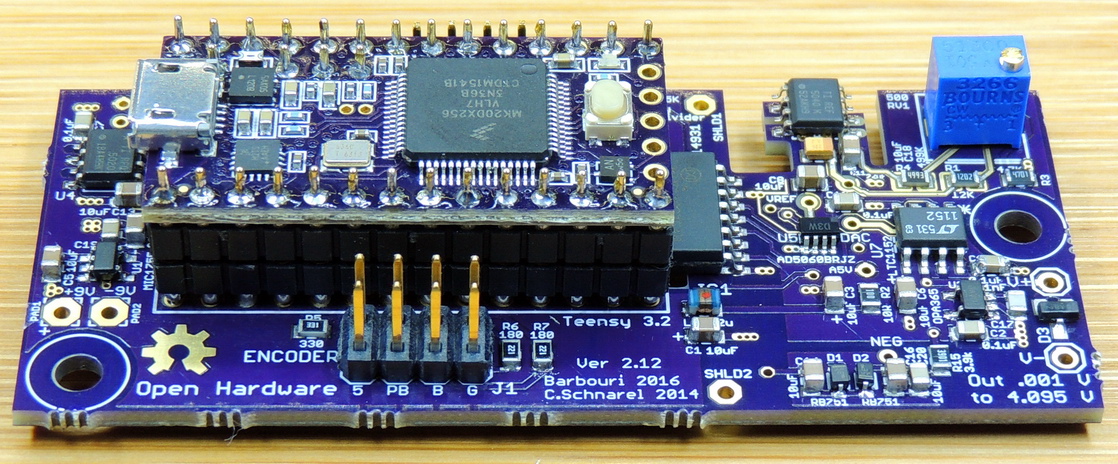

Assembling the V2.12 Programmable Voltage Reference Board.
Continue reading “Programmable Voltage Reference V2.12 Assembly”

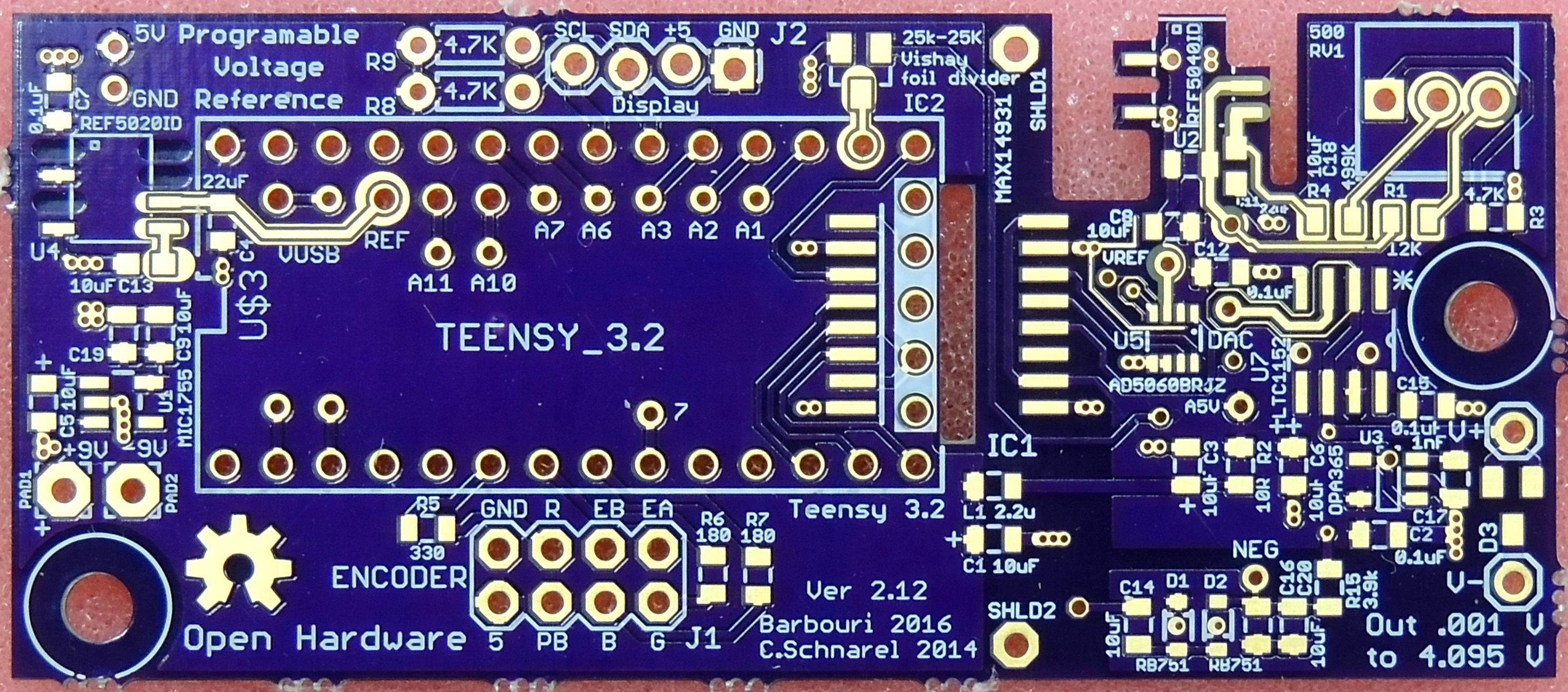

I just received the version 2.12 bare circuit boards from OSH Park
Continue reading “Version 2.12 of the Programable Voltage Reference”

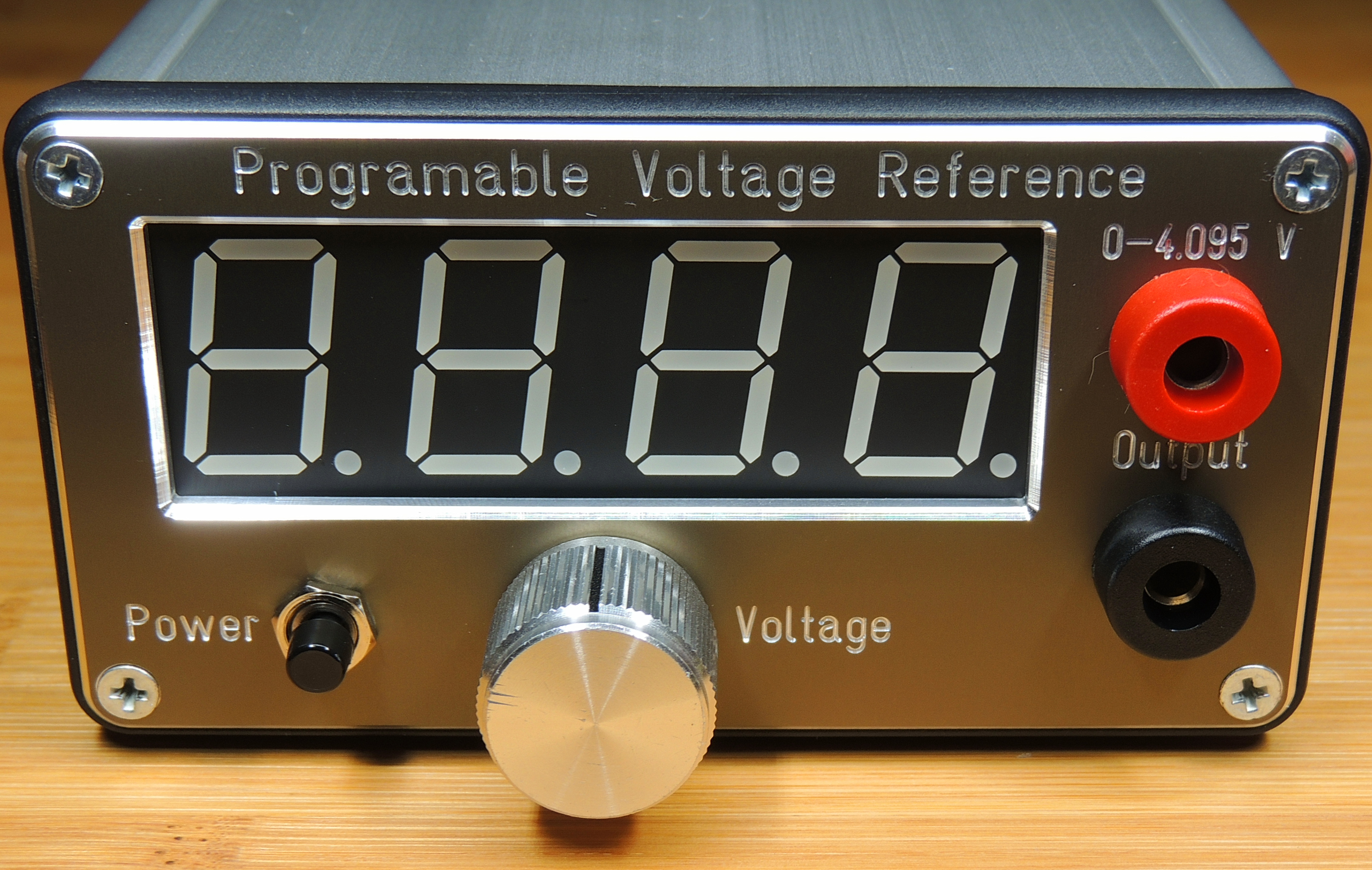

While waiting on the version 2.12 printed circuit boards from OSH Park, I decided to do some work on the case.
Continue reading “Programmable Voltage Reference Case”
A precision programmable voltage reference circuit capable of 0.001 to 4.095 volt output in 1 mV steps with an accuracy of 100 uV.
This project is based on a circuit designed by uChip and presented in the Sparkfun forum. There is a Github page for the original design. Continue reading “Programmable Voltage Reference Project”

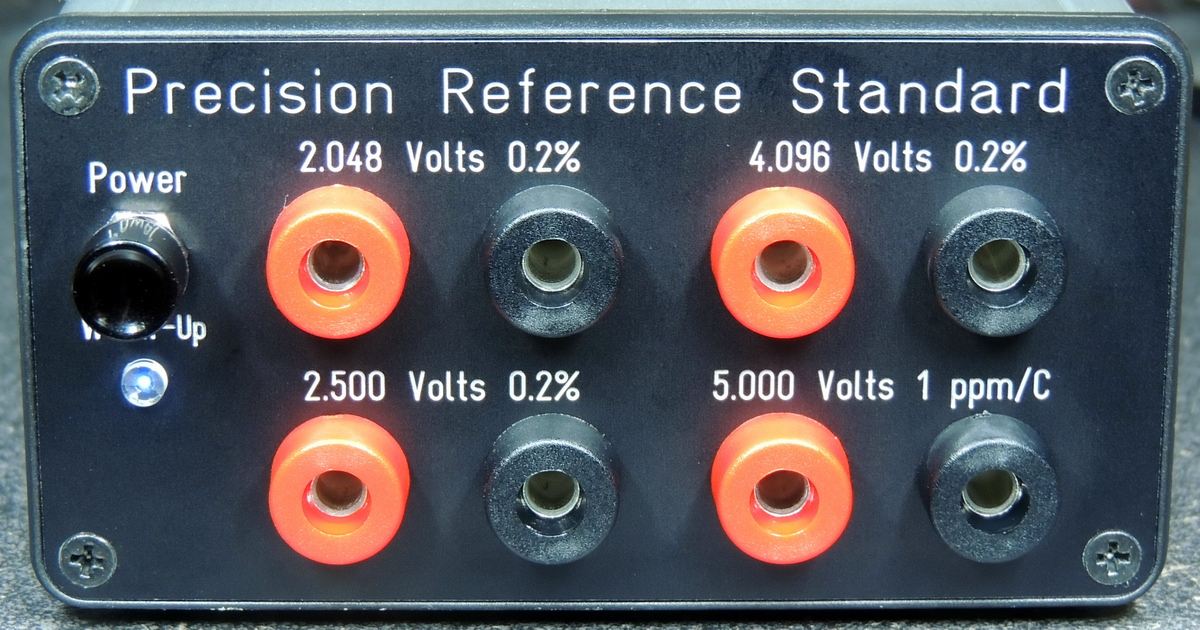

After seeing several other voltage reference projects online and many more assembled boards on Ebay, I decided to put together my own version of a multi-output module that I could use for prototyping ADC, and other projects.
I needed at least a 2.048 volt and a 4.096 volt precision reference. An extremely high accuracy 5.000 volt reference was also on my list. I already had an enclosure on hand that I wanted to use, but in my early mock ups the three outputs on the front panel just didn’t look right. So for good measure a 2.500 volt reference was added to the project.
The 4.096 volt and lower reference IC’s only required a stable 5 volt supply, but the 5.000 volt reference IC required a minimum of 9 volts and preferably 10 volts for maximum stability. So a separate add-on board was designed to supply 9 or 10 volts along with a warm-up timer and battery low voltage alert.
