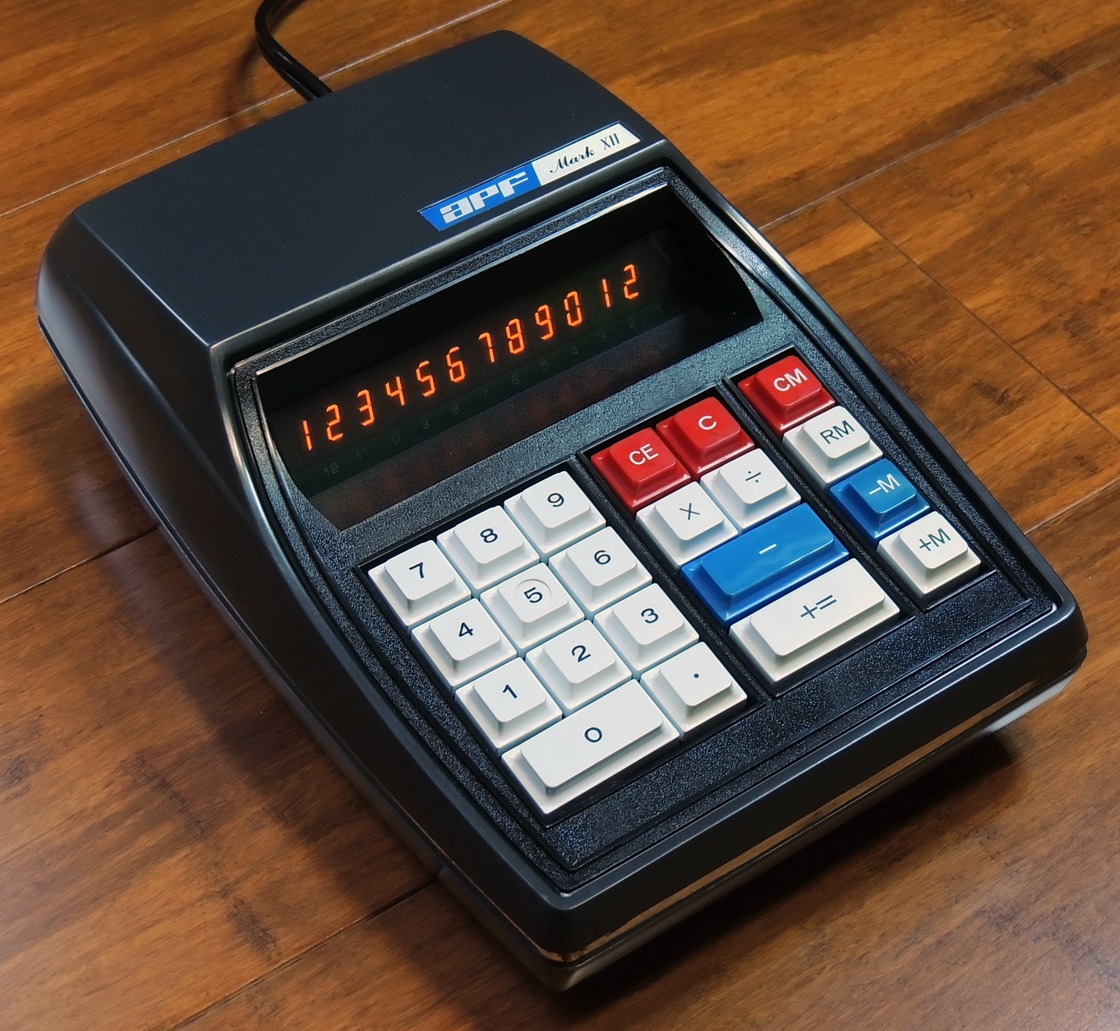

The APF Mark XII (12) is an interesting calculator. It is based on the Cal-Tex Semiconductor Inc. CT5005 FlexiChip, which was developed in 1972. The calculator is a four function with separately addressable memory register, all on a single IC.

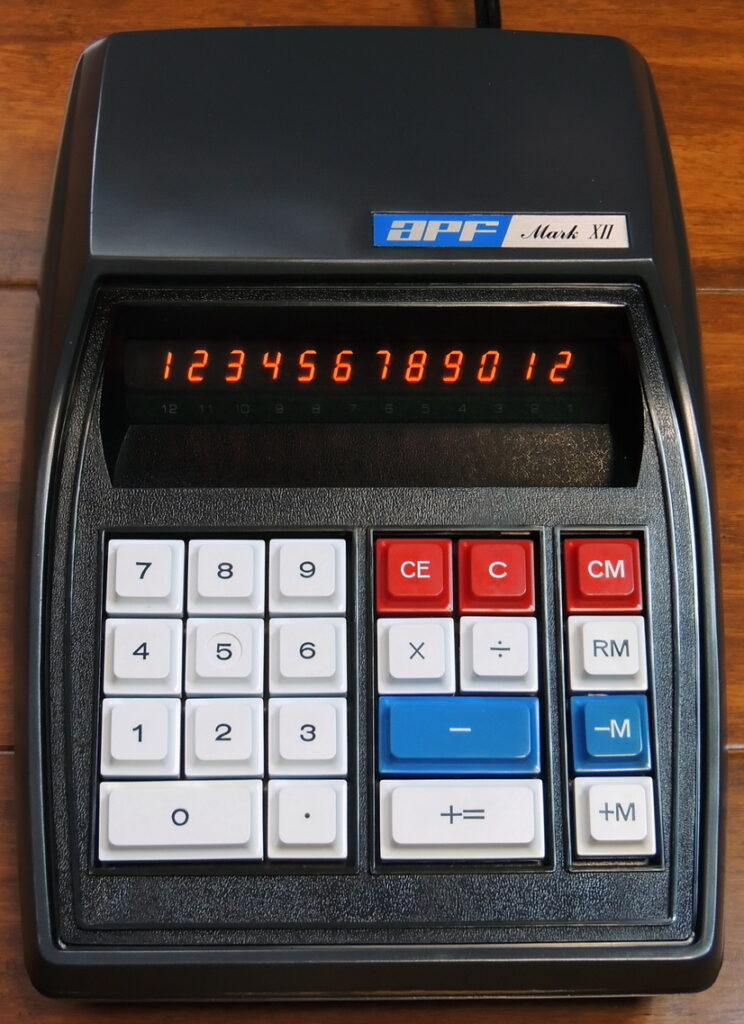

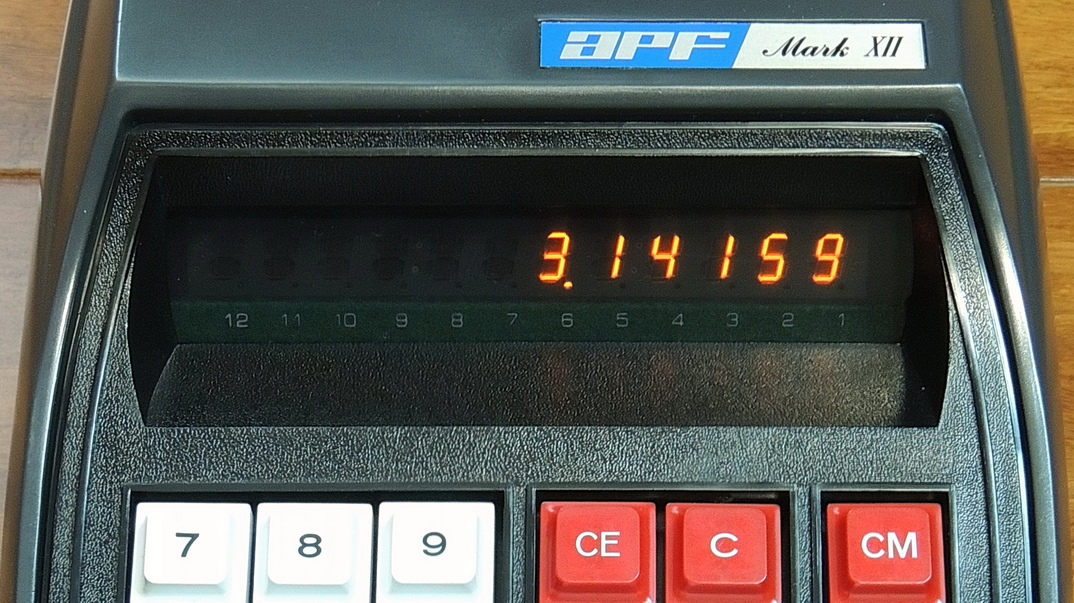

The Mark XII is a 12 digit calculator utilizing a gas-discharge display similar to a Panaplex display. It is a bit odd in that it doesn’t have a separate error, minus, or memory indicator, it instead uses the center digit segment for the minus sign, and decimal points for the error or overflow indication. The Mark XII utilizes leading zero suppression, and has a selectable fixed decimal point selection from 0 to 5. To select the decimal point position, the decimal point key is depressed and held, then the digit key from 0 to 5 is pressed to set the position. Default decimal position on power-up is 2.
The Mark XII uses a case and key type identical to the APF Mark 1 with a different bezel and keypad frame insert to accommodate the additional keys. It also uses the same obsolete 2 pin AC power connector as the Mark 1.

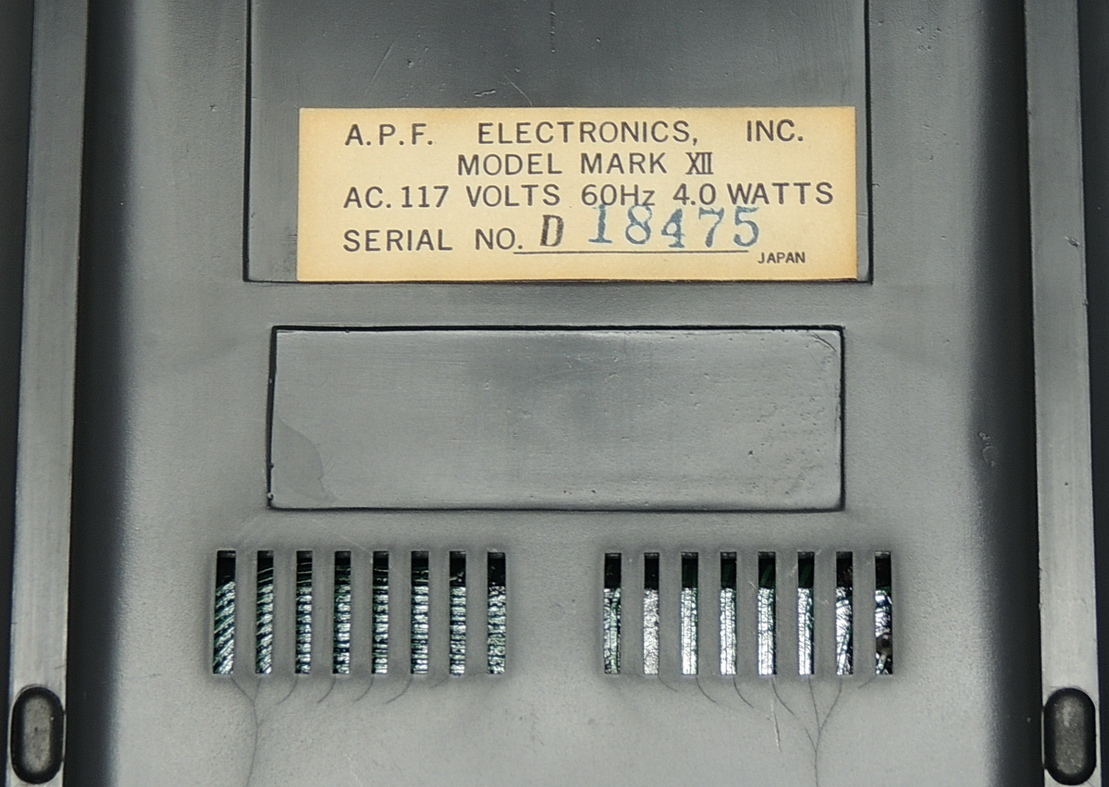

Estimated manufacturing date for this unit is early 1973

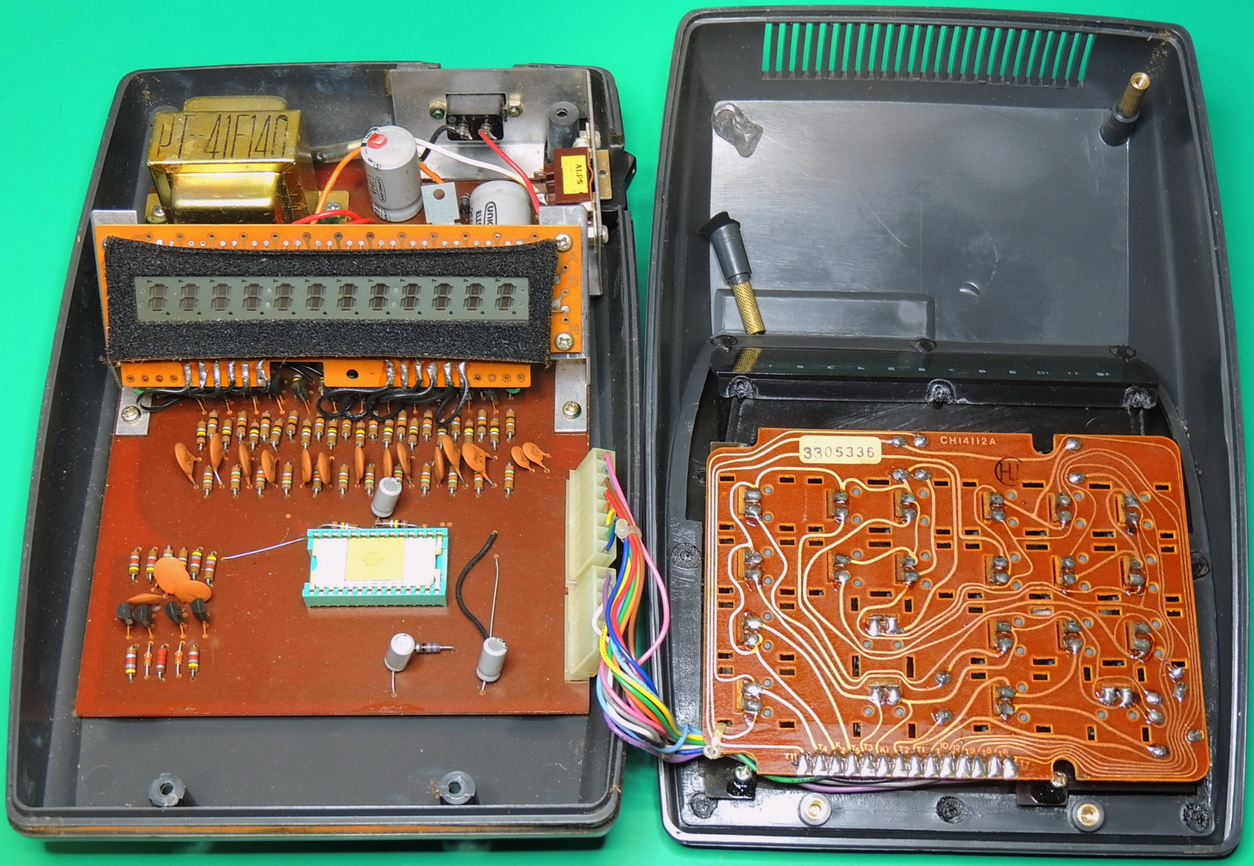

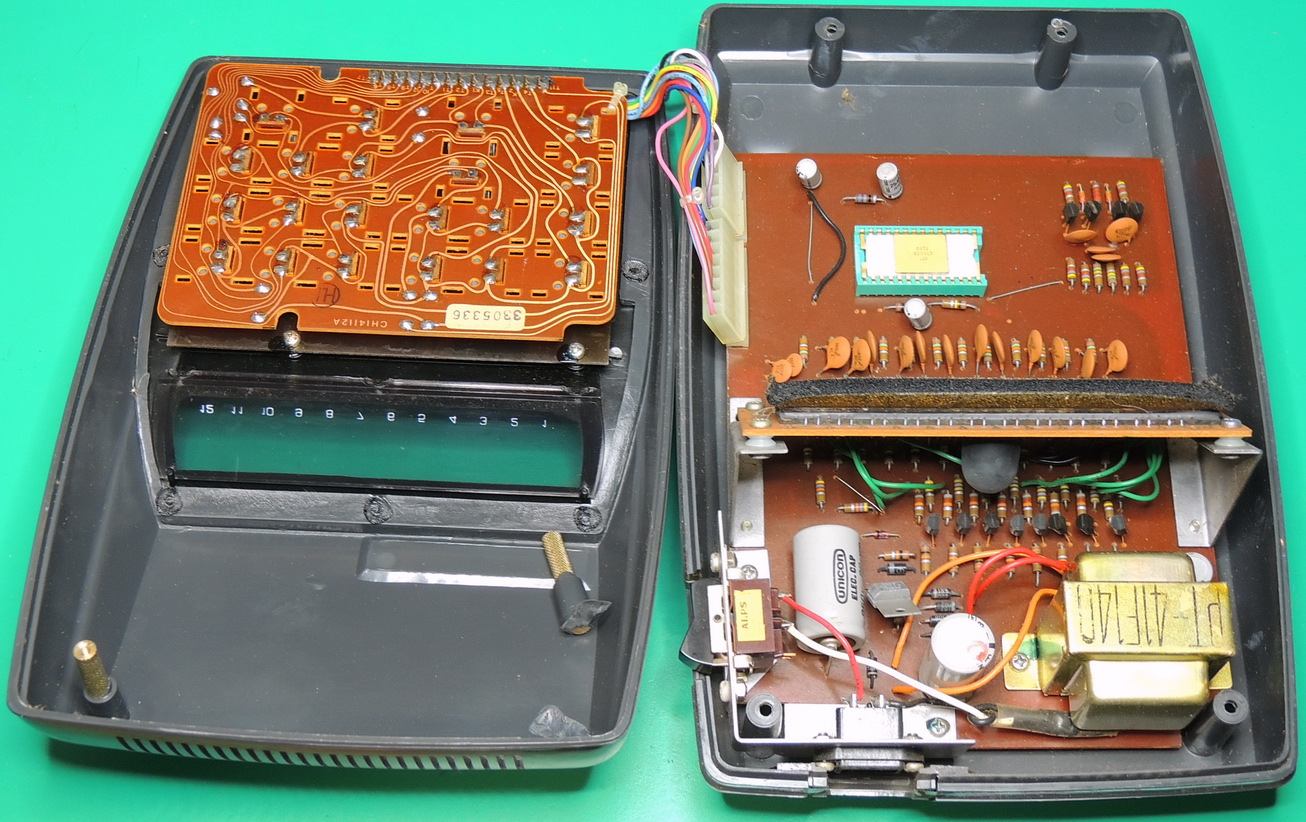

When I received the calculator I noticed a rattling noise when I shifted the calculator position. Upon opening up the unit, I found one of the supports sheared off the top cover, which was the noise maker. This support had about 3/4″ of uninsulated brass that very easily could have shorted out the power supply or other critical component. This is why I almost always open the equipment up before applying power to the unit. Because you never know what you might find inside.

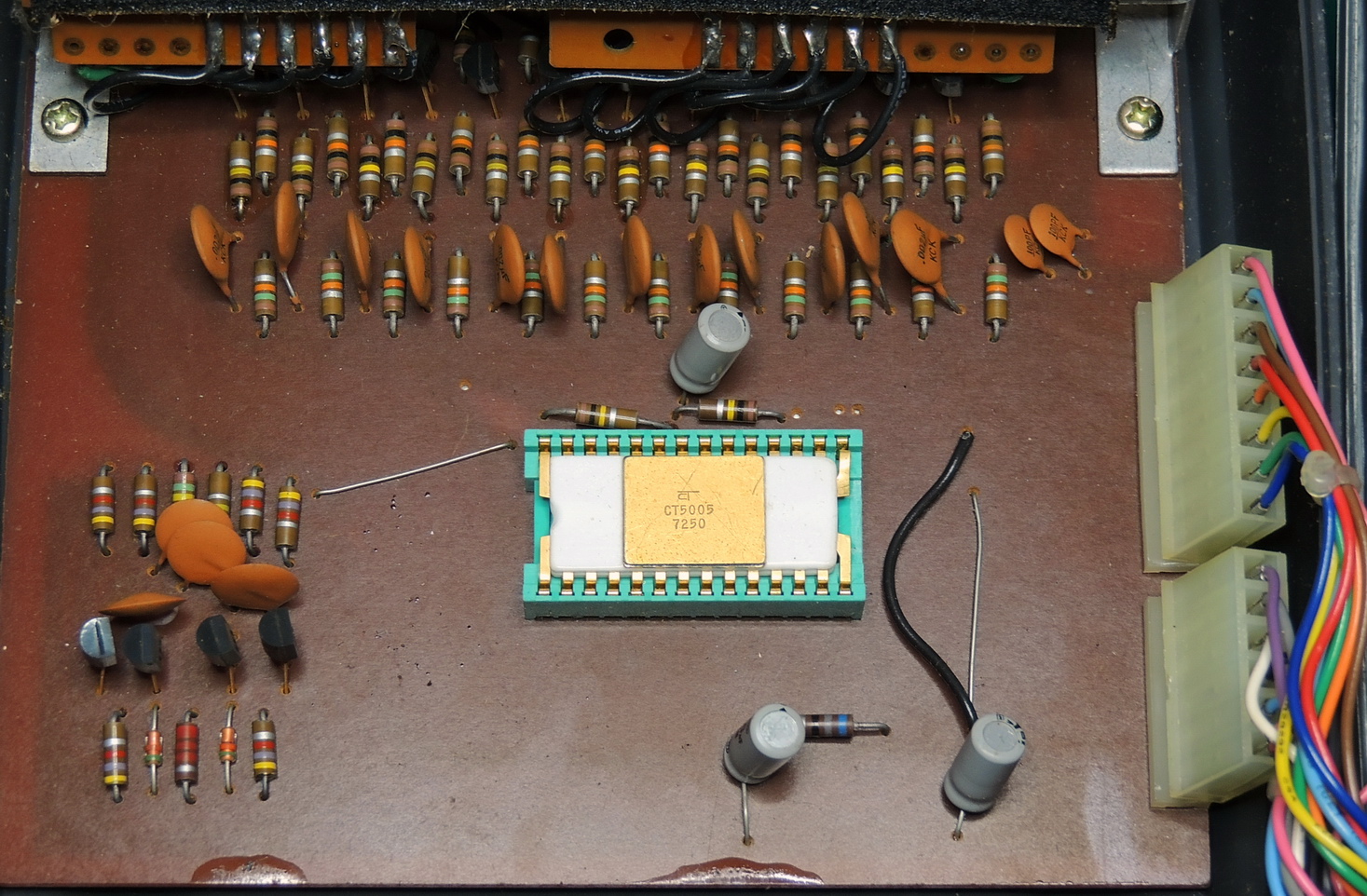

The Cal-Tex Semiconductor Inc. CT5005 is a P‑channel MOS integrated circuit in a 28 pin ceramic package. Cal-Tex also made a plastic package version of this IC.
The CT5005 IC contains the equivalent of 3,000 transistors and a logic circuit with over 400 gates and 230 shift-register bits.
The arithmetic in the CT5005 is done with two, 52 bit, or thirteen digit registers. Timing for register circulation is arranged in thirteen groups of four, each one representing time for one BCD digit. At a clock rate of 25 kHz this results in a circulation or “word time” of 2 ms. This unit has a clock frequency of 16.8 kHz which is a bit slower than the 25 kHz typical data sheet frequency, resulting in a circulation time of 3 ms.

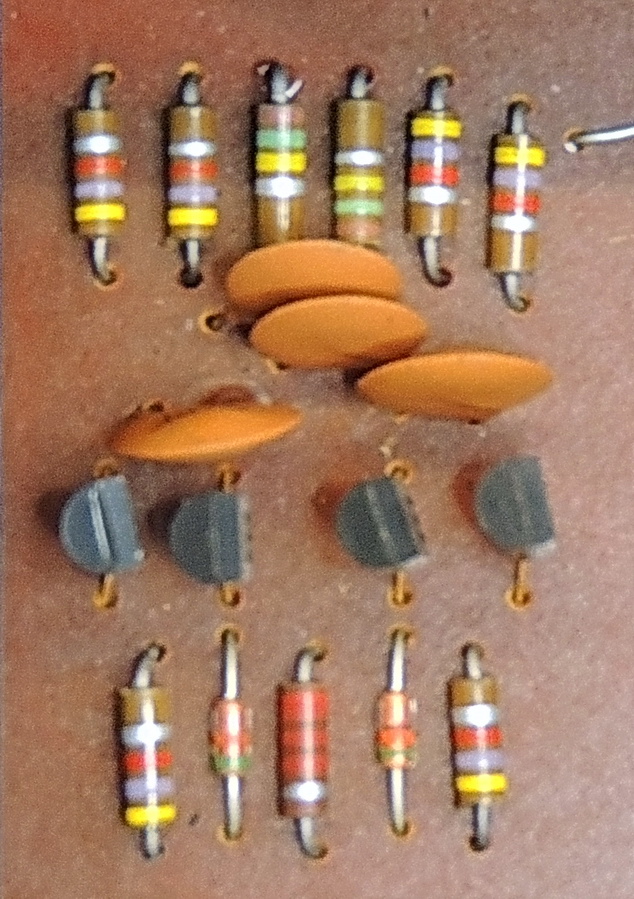

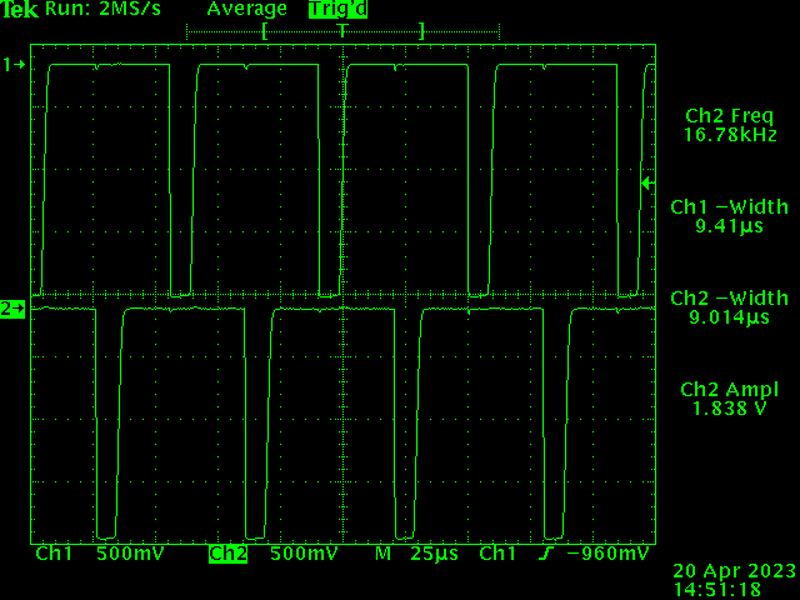

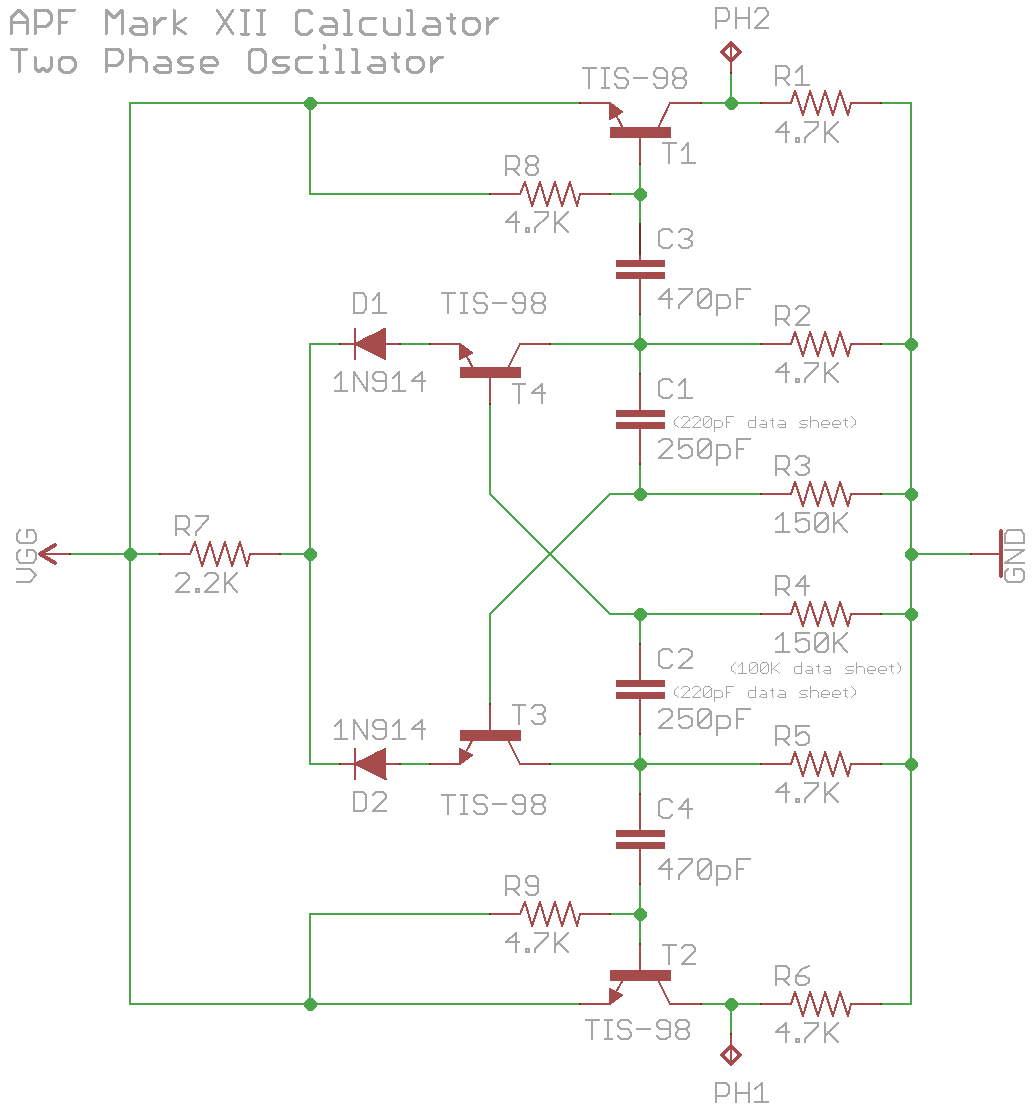

The CT5005 IC requires a two phase clock oscillator for operation. The APF circuit differs slightly from the Cal-Tex recommended circuit, in that one resistor has a different value, and two capacitors are 13.6% higher in value. The two 250 pF capacitors verses the recommended 220 pF are what mostly sets the oscillator at the lower frequency.

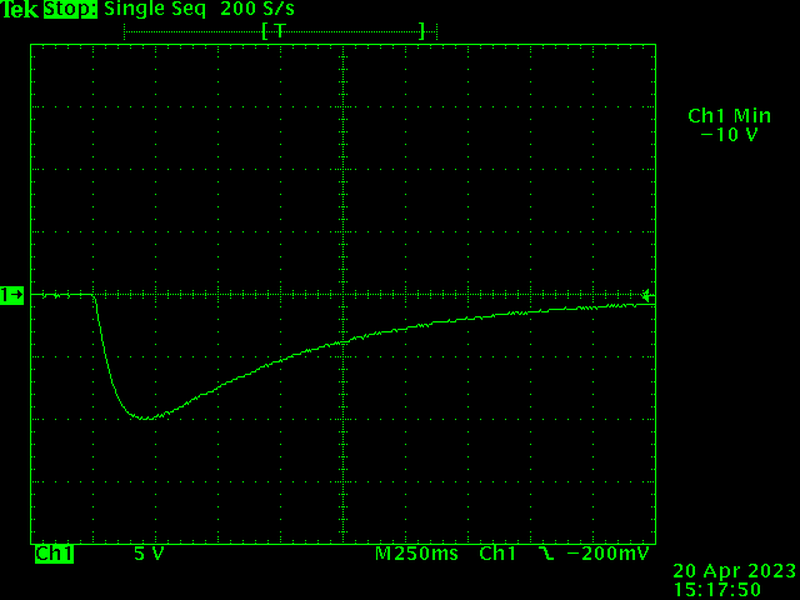

Another signal required for the CT5005 Is is the “SW ON” signal from the power supply, which is a negative pulse from a R/C circuit used to initialize the IC.

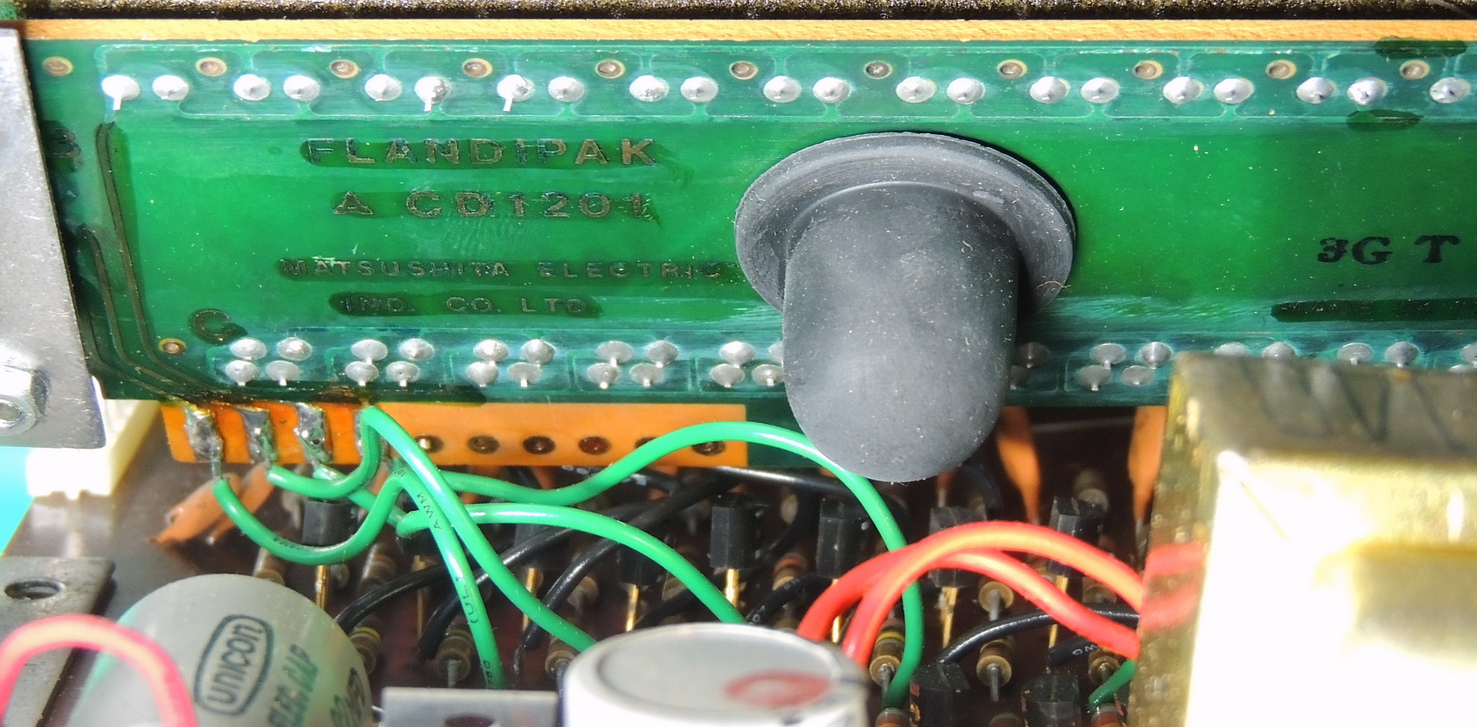

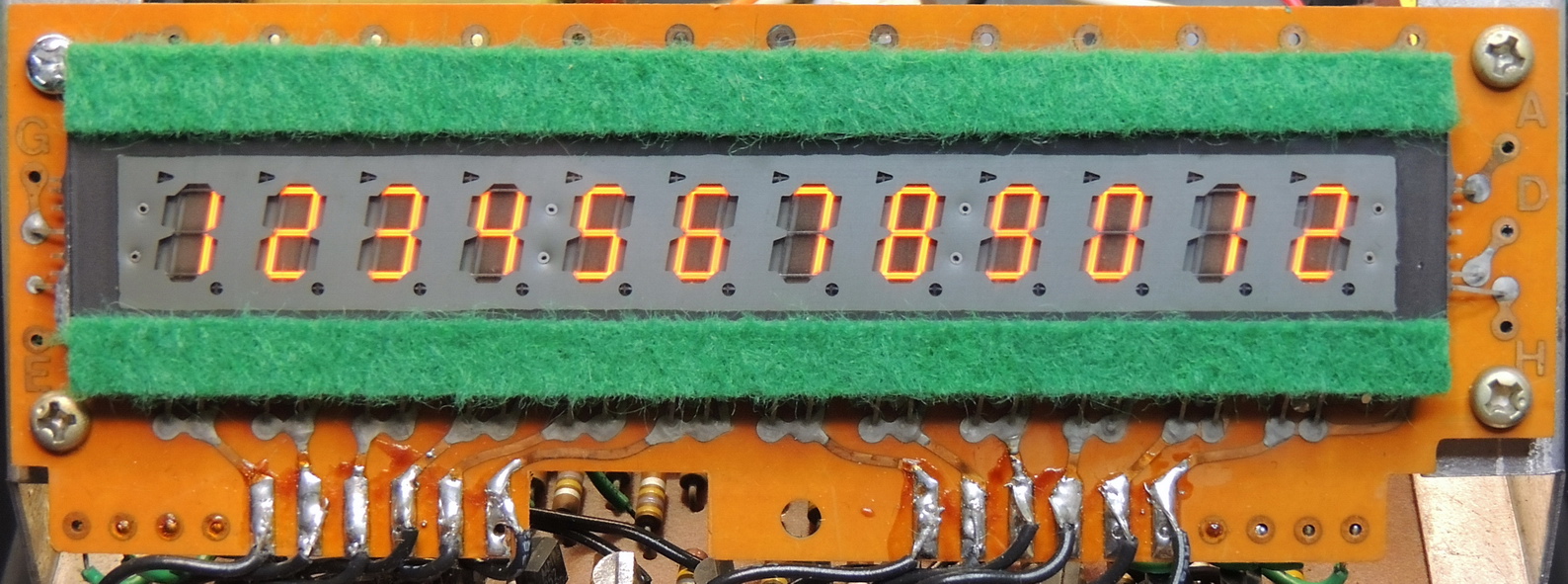

The 12 digit display uses a FLANDIPAK CD1201 module from Matsushita Electric. It has 12 digits with decimal points, and a tick mark above each digit which is not used on this calculator.
While similar to the Burroughs Panaplex display, this gas-discharge display uses segments recessed behind a front mask resulting in segments with beveled ends in appearance.

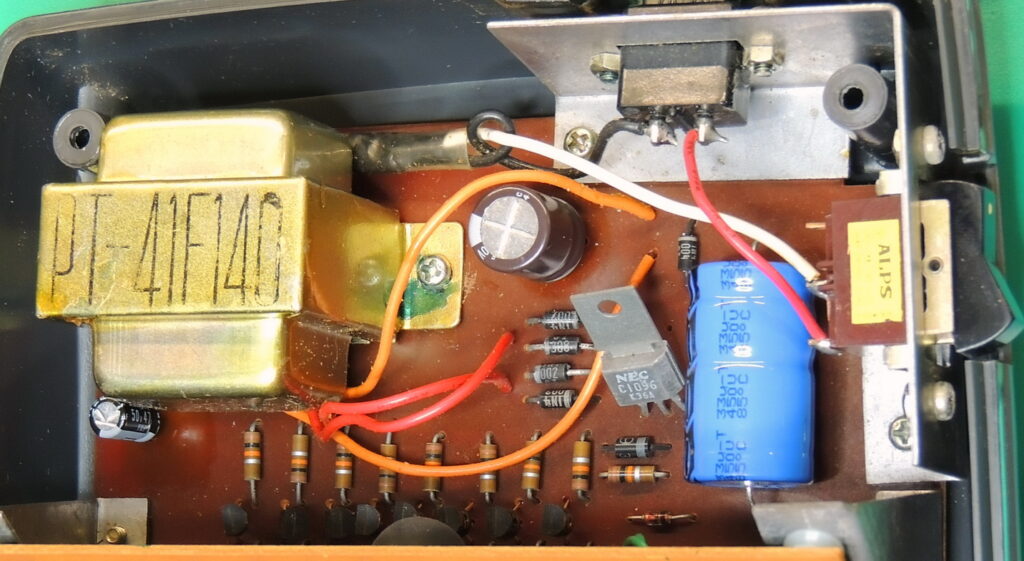

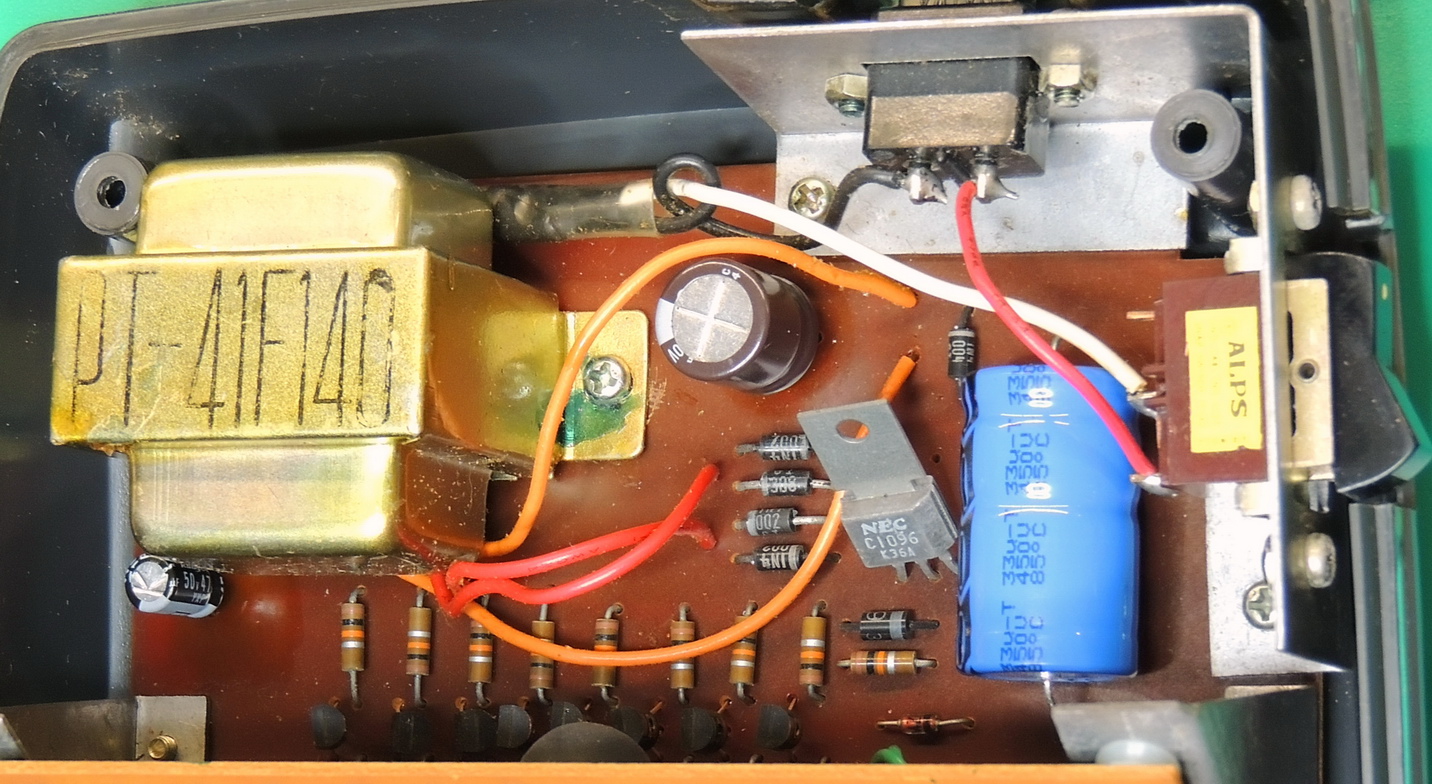

Nothing too exciting with the power supply section of the calculator. The AC line input uses a miniature rectangular power connector, the same as the APF Mark 1. There is no visible fuse for the 117 volt AC transformer primary winding that I could see.

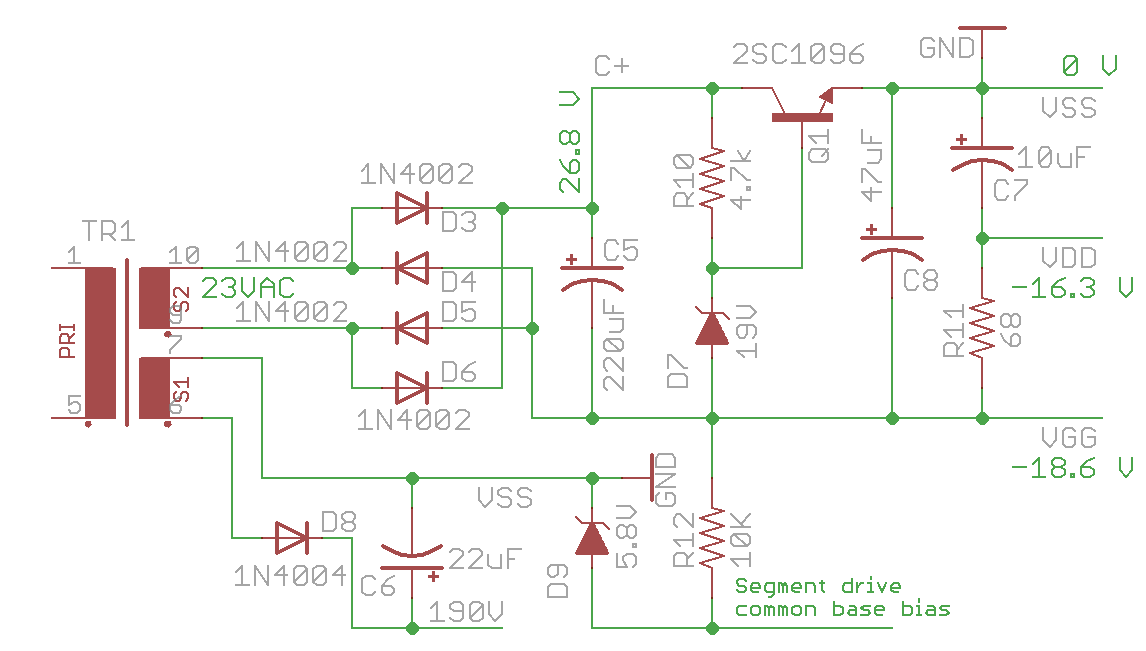

The secondary side of the transformer has two windings, one for the high voltage 190 volt display power and a low voltage winding at 23 VAC for the rest of the board. There are three low voltage power rails which are all negative when referenced to VSS ground.

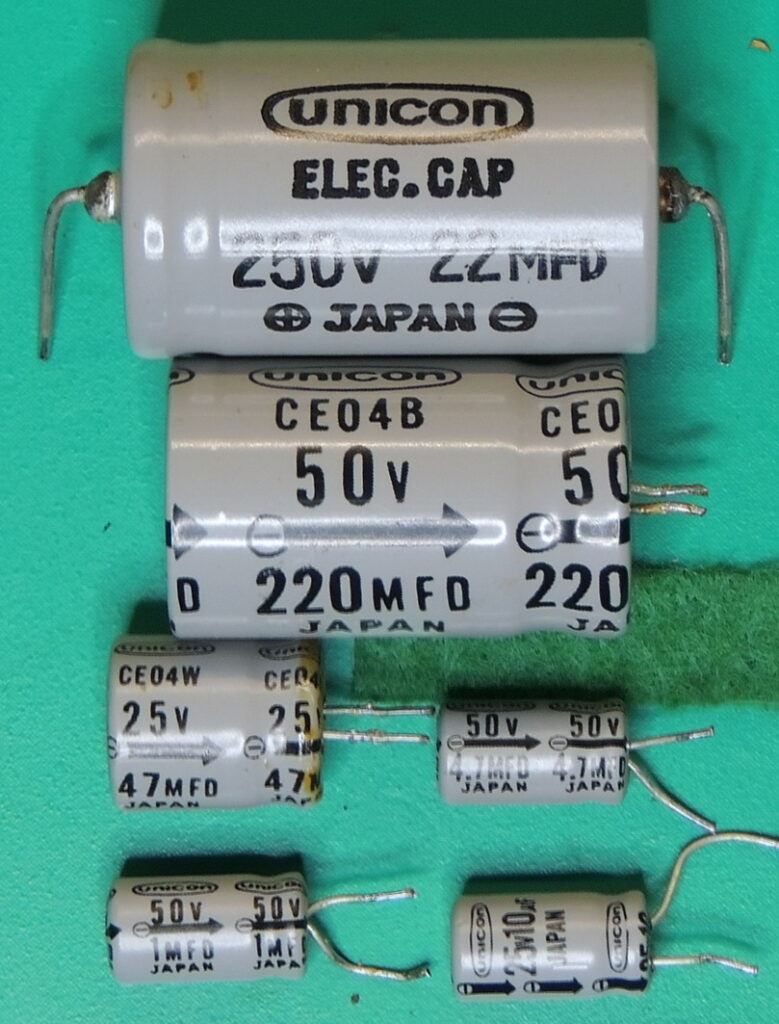

All of the electrolytic capacitors were replaced with long-life Vishay and Nichicon units. Most of the Unicon capacitors were in good shape with only the smaller capacitors showing elevated ESR readings. I don’t know the history and use of this calculator, but for 50+ year old capacitors these seemed to have aged well.

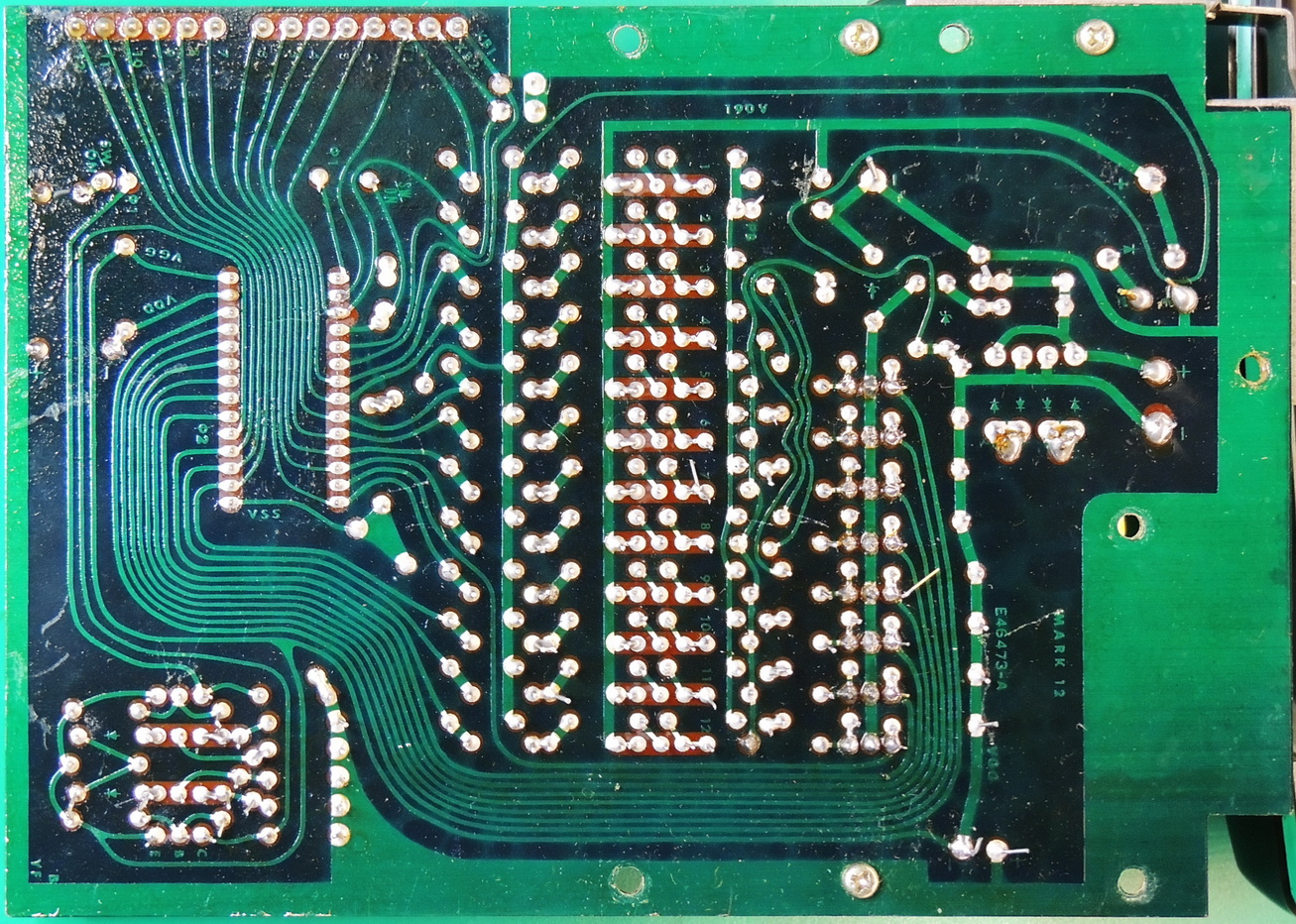

The back side of the main circuit board was less impressive as to the quality of construction. There were several deeply scratched circuit traces, along with many long component leads that had not been trimmed after soldering. Some of the leads were perilously close to shorting other board traces. After some trimming and re-soldering the board was in much better shape.

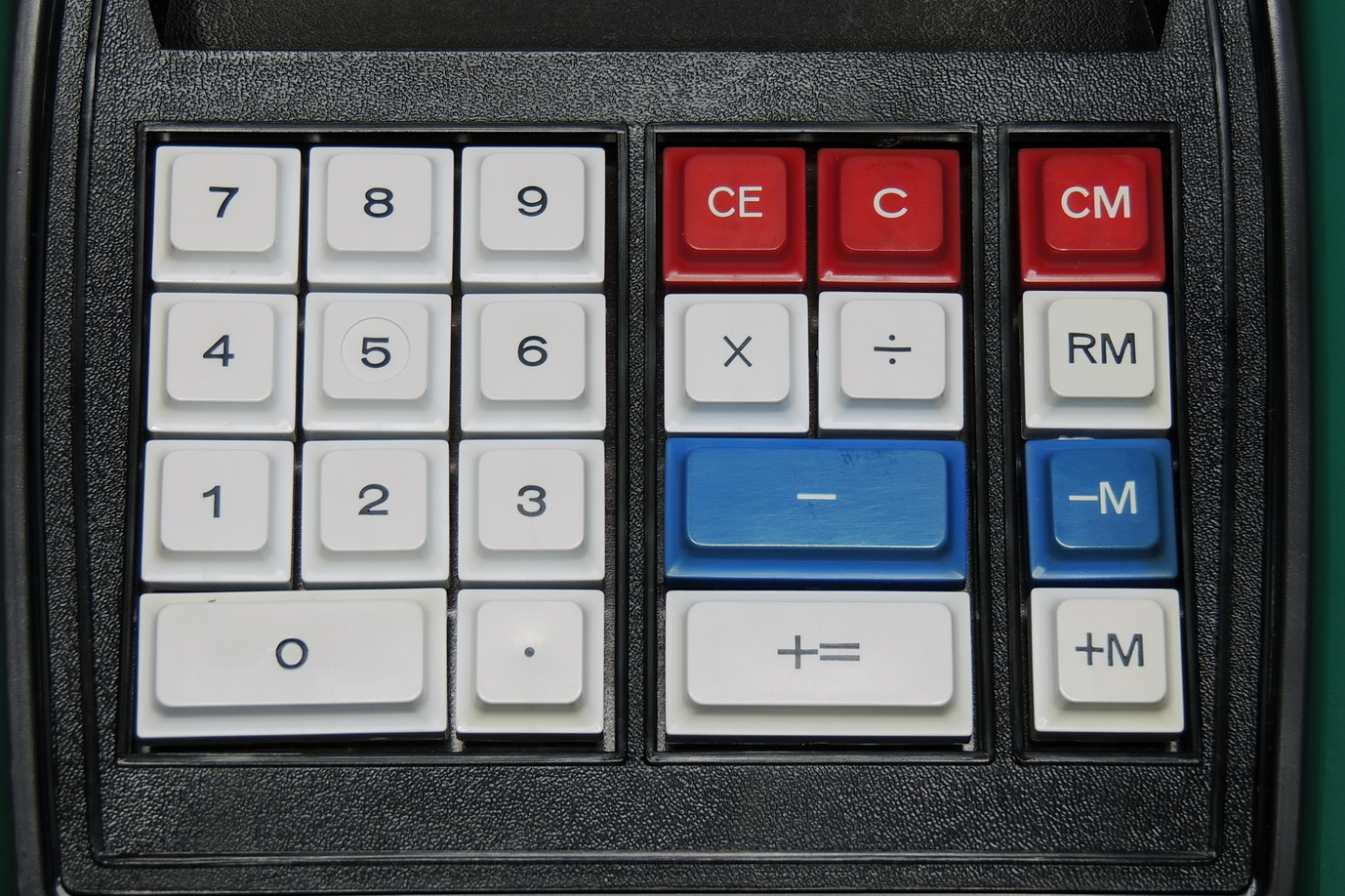

The keypad has a red, white, and blue theme again similar to the APF Mark 1, but with an extra row of four keys for the the memory function. Unlike the Mark 1 calculator, this calculator uses mechanical key switches instead of magnetic reed switches.

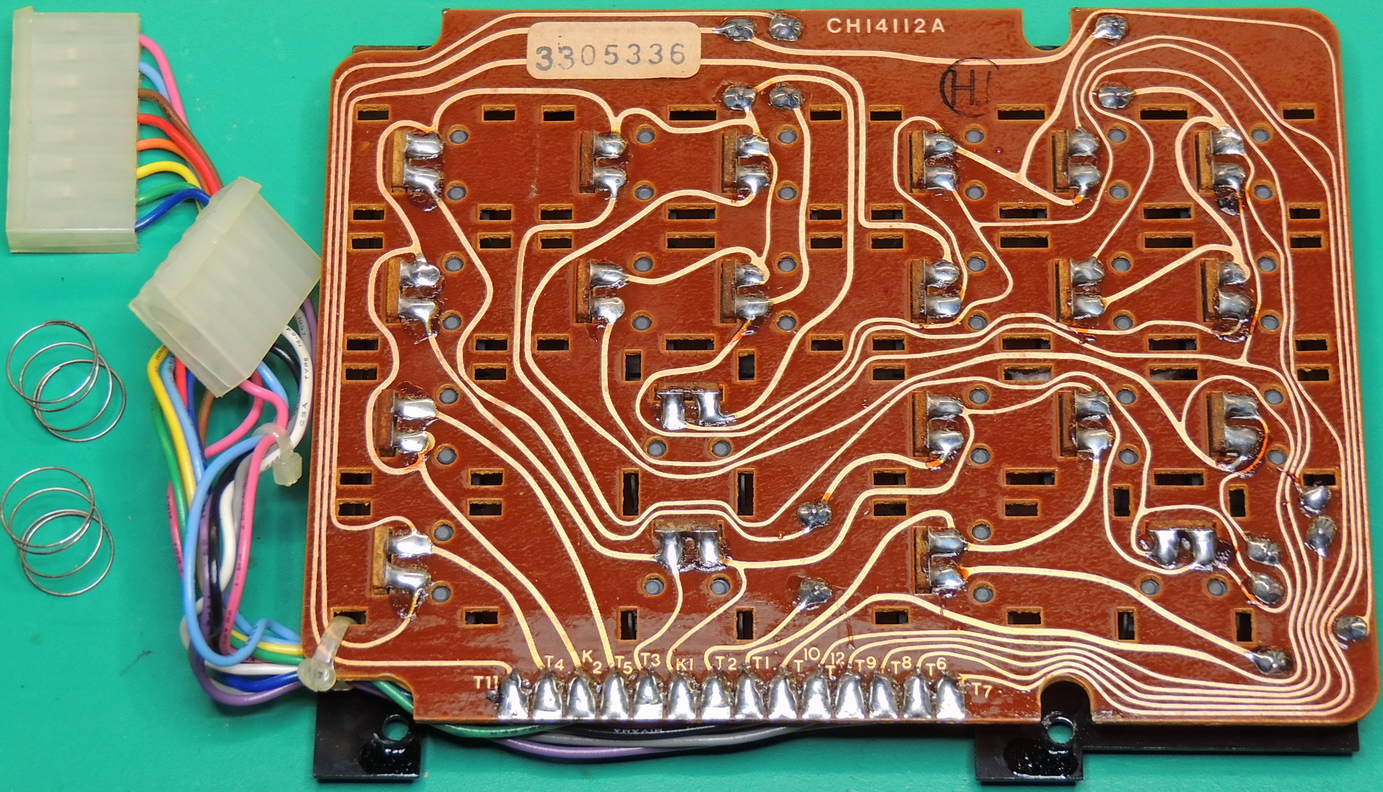

The keypad uses a 2 X 12 matrix for detecting key presses, and is connected to the main board with an 8 and 6 pin connector. The CT5005 IC has built in switch de-bounce circuitry to prevent false keypresses from noisy switches.
During testing the calculator was using between 2.9 and 3.5 watts of power.
While it is an interesting 12 digit calculator, and from what I can tell a fairly rare model, I still prefer the APF Mark 1 calculator with only 8 digits over this one. While not a bad calculator, it lacks some of the niceties that other calculators of this era had. More digits is not always better. I did have a lot of fun reverse engineering the circuits on this calculator though, and may do more of that on future projects.
